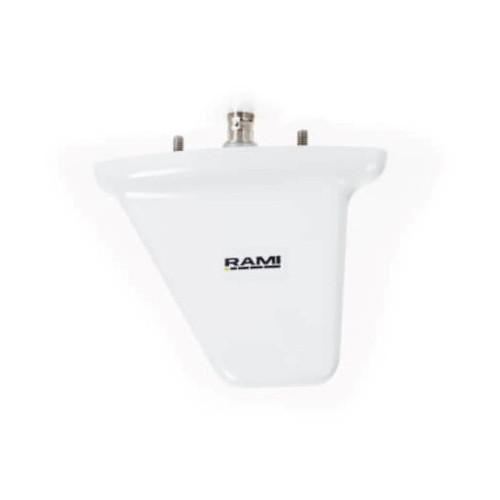

RAMI AV-74 Antenna - DME/Transponder/ADS-B - Blade Type
RAMI AV-74 Antenna - DME/Transponder/ADS-B - Blade Type
The RAMI AV-74 is a broadband blade type antenna for transponder or DME application. Its housing is constructed of anacrylonitrile-styrene-acrylic (ASA) shell. The white colour allows maximum performance without losses due to colour pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph.
Model | AV-535 |
Application | Transponder/ DME/ ADS-B |
Frequency | 960-1220 MHz |
Impedance | 50 Ohms Nominal |
VSWR | 1.5:1 Maximum |
Polarisation | Vertical |
Pattern | Omni-Directional |
Connector | “BNC” Female |
RF Power Capacity | 2.5 kW Peak |
Gain | Unity |
Max Weight | 0.2 lbs |
Colour | Gloss White |
FAA TSO | C66c, C74c |
