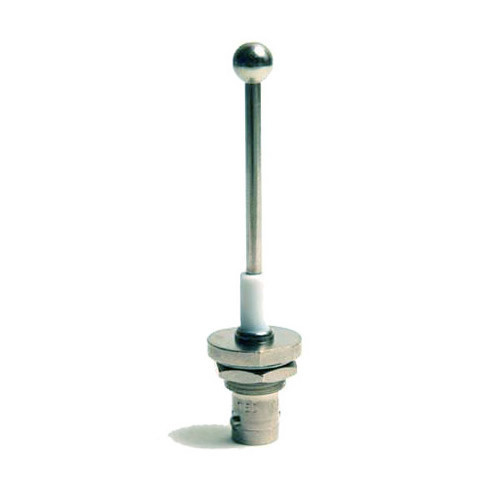

The TED 104-12 stub transponder antenna consist of a mono-pole antenna that is top loaded with a sphere to give an effectively shorter antenna and to create a factor of reliability and safety.

Fed by a 50 ohm coaxial transmission line, the antenna offers a voltage standing wave ratio of 1.2:1 at 1090 MHz and less than 2:1 at 1030 MHz. The antenna presents an omni-directional vertically-polarized radiation pattern when mounted to the underside of the aircraft fuselage. It is readily mounted using an “O-ring,” sealed single hole bulkhead-feed-through with a BNC type female connector.

Frequency: 1030-1090 MHz
Standing Wave Ratio: 1.2:1 at 1090 MHz, 2:1 at 1030 MHz

Beryllium Alloy, Nickel Plated stub monopole with BNC Connector.

Weight 50gm, Length 84mm
